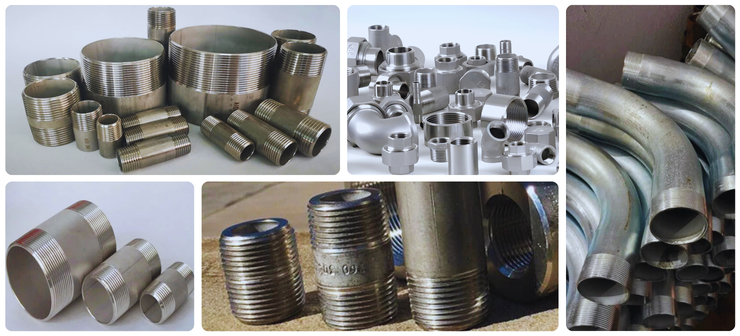

Pipes Nipple – Threaded Pipe Nipple Manufacturer in India
AstroForge Fitting Industries is a leading manufacturer, supplier, and exporter of Pipe Nipples in India, specializing in threaded pipe nipples in a wide range of sizes, classes, and materials. We produce high-quality forged threaded nipples that comply with international standards such as ASME B16.11, MSS SP-79, MSS SP-95, BS 3799, DIN, and EN. Our pipe nipples are designed for use in oil and gas, chemical processing, marine, power plants, and industrial piping systems, ensuring durability, leak-proof connections, and excellent pressure handling.
Pipe nipples are essential short lengths of pipe with male threads on one or both ends that allow easy connection between pipes or fittings. They are widely used in plumbing, industrial piping, and high-pressure systems for creating extensions, reducing connections, or joining valves and equipment.
Threaded Pipe Nipple Types and Forms
We manufacture and supply a complete range of threaded pipe nipples, including:
Fully Threaded Pipe Nipples – Threads run across the entire length for maximum connection flexibility.
Close Threaded Pipe Nipples – Very short nipples with continuous threading for tight connections.
Half/One-End Threaded Pipe Nipples – Threaded at one end for connecting valves, flanges, or equipment.
Female Threaded Pipe Nipples – With internal threads for specific piping requirements.
Threaded Reducer Nipples – Used to connect pipes of different diameters.
Available in NPT, BSP, and BSPT threading options, our threaded nipples ensure precise and secure connections in all piping systems.
Pipe Nipple Specifications
Size Range: 1/2″ NB to 4″ NB
Pressure Class: 3000 LBS, 6000 LBS, 9000 LBS
Type: Threaded (S/W) & Screwed (SCRD) – NPT, BSP, BSPT
Standards: ASME 16.11, MSS SP-79, MSS SP-95, BS 3799, DIN, EN 10253
Forms: Threaded Pipe Nipple (Close, Half, Full, Female, Reducer)
Pipe Nipple Material Grades
Our ASME B16.11 threaded pipe nipples are available in a wide range of materials, including:
Stainless Steel Threaded Pipe Nipples
ASTM A182 F304, F304L, F316, F316L, F321, F347, F904L
ASTM A312/A403 TP304, TP316
Carbon Steel Threaded Pipe Nipples
ASTM A105, A350 LF2, ASTM A53 GR A/B, ASTM A106 GR A/B/C
API 5L Grades: B, X42, X46, X52, X60, X65, X70
Alloy Steel Threaded Pipe Nipples
ASTM A182 / A335 (P1, P5, P9, P11, P22, P91)
ASTM A234 Grades 1CR, 1¼CR, 2¼CR, 5CR, 9CR
Duplex & Super Duplex Steel Nipples
ASTM A182 F51, F53, F55, S31803, S32205, S32750, S32760
Nickel Alloy Threaded Nipples
Inconel 600/601/625/825, Monel 400, Alloy 20, Hastelloy C276
Nickel 200/201
Copper Alloy Threaded Nipples
C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30)
All pipe nipples are supplied with EN 10204 3.1 certification, material traceability, and can be tested with NDT, hydro, and PMI as per client requirements.
Applications of Threaded Pipe Nipples
Our threaded pipe nipples are used in:
Oil and gas pipelines and refineries
Chemical and petrochemical plants
Power plants and boilers
Marine and offshore piping systems
Water treatment and desalination plants
Industrial and plumbing connections
Why Choose Our Pipe Nipples?
Manufactured to ASME, ASTM, MSS, and DIN standards
High pressure and corrosion-resistant
Available in multiple materials and pressure classes
Custom lengths, threading types, and finishes on request
Supplied with complete test certificates and quality assurance
Industries We Serve
Leading pipe fitting manufacturers for Following sectors
FAQs - Pipes Nipple
A pipe nipple is a short length of pipe with male threads on one or both ends, used to connect two pipes or fittings.
Common types include close, half-threaded, fully threaded, reducer, and female threaded pipe nipples.
Pipe nipples are manufactured as per ASME B16.11, MSS SP-79, SP-95, BS 3799, DIN, and EN 10253 standards.
They are available in stainless steel, carbon steel, alloy steel, duplex, super duplex, copper alloys, and nickel alloys.
Threaded pipe nipples are available from 1/2″ NB to 4″ NB in various pressure classes.
Pipe nipples are offered in 3000 LBS, 6000 LBS, and 9000 LBS pressure ratings.
Threaded pipe nipples are available with NPT, BSP, and BSPT threads for different connection requirements.
They are widely used in oil & gas, petrochemical, marine, water treatment, and industrial piping systems.
Yes, all pipe nipples are supplied with EN 10204 3.1 test certificates and material traceability reports.
Yes, we can provide custom lengths, threading types, finishes, and materials as per project requirements.
